AIM MXS 1.2 Icon Dash Logger w. GPS for Buell / EBR 1190 RX / SX

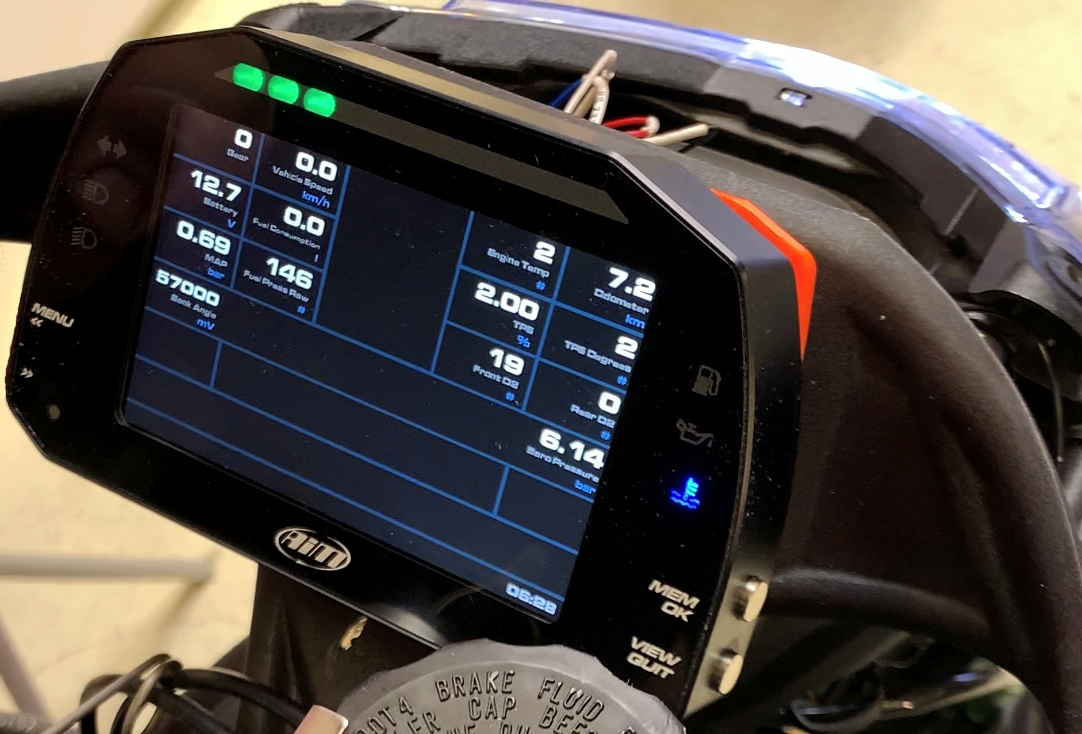

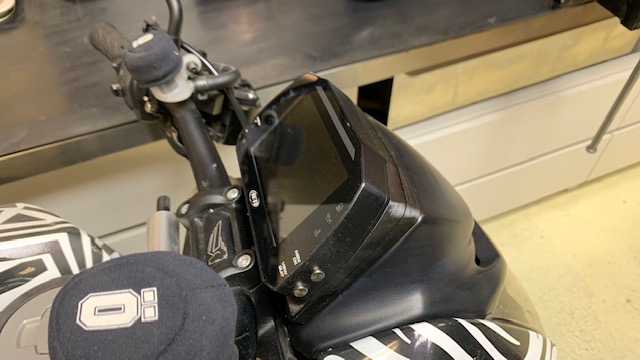

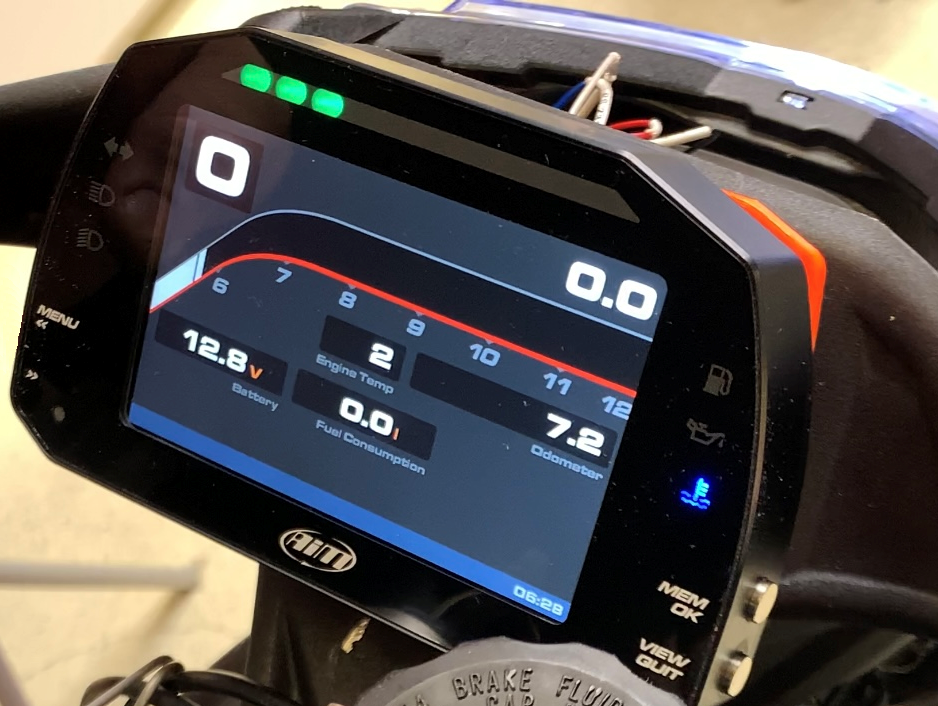

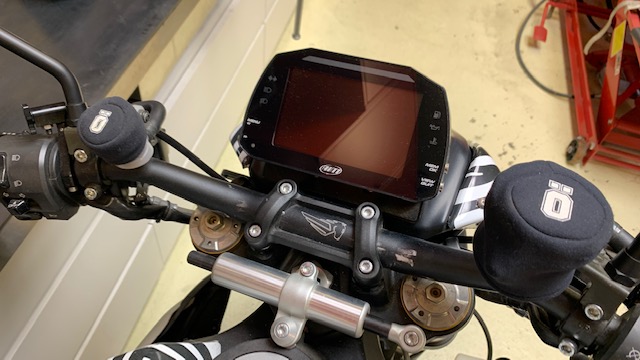

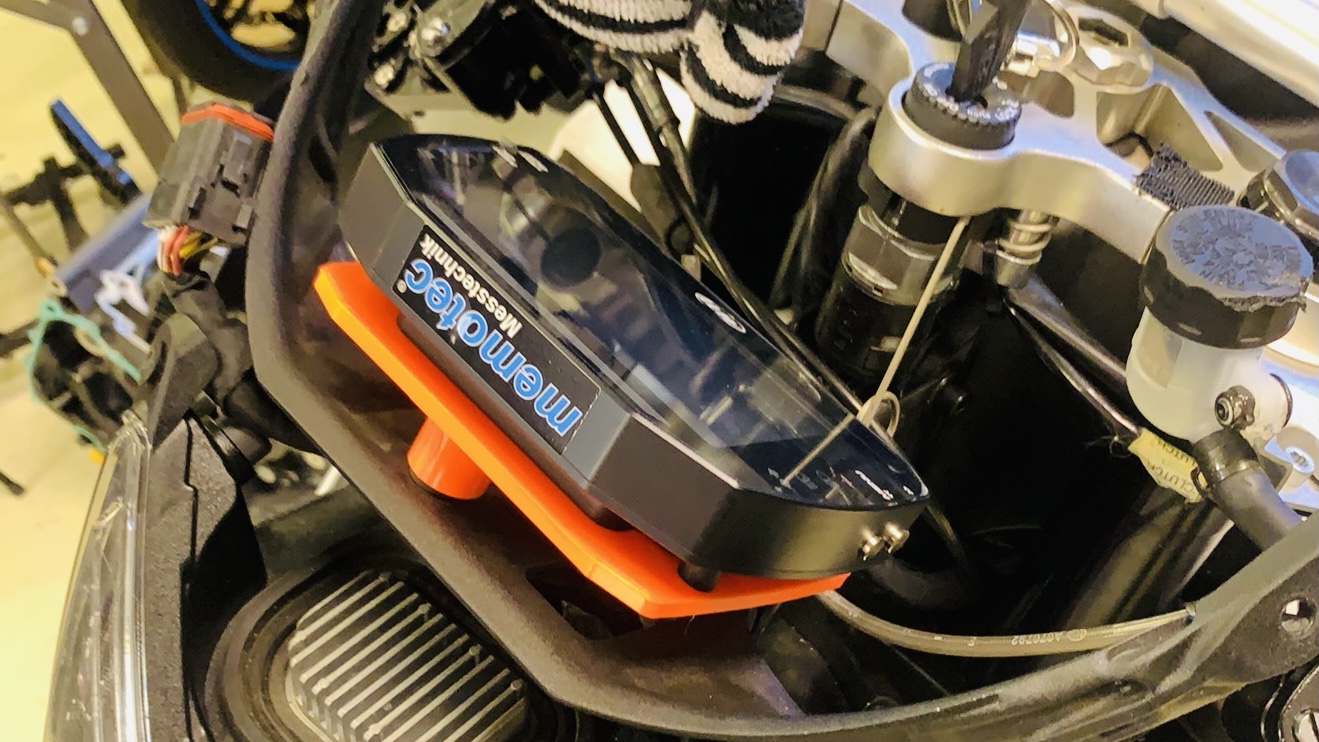

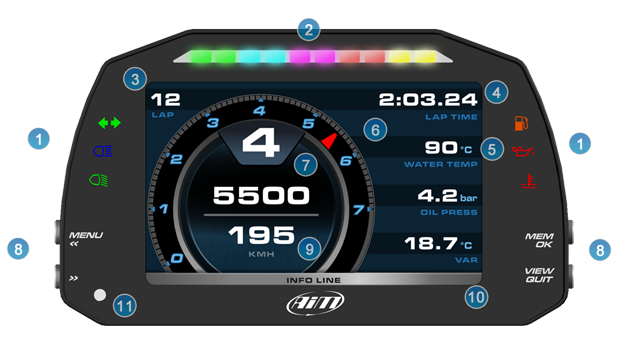

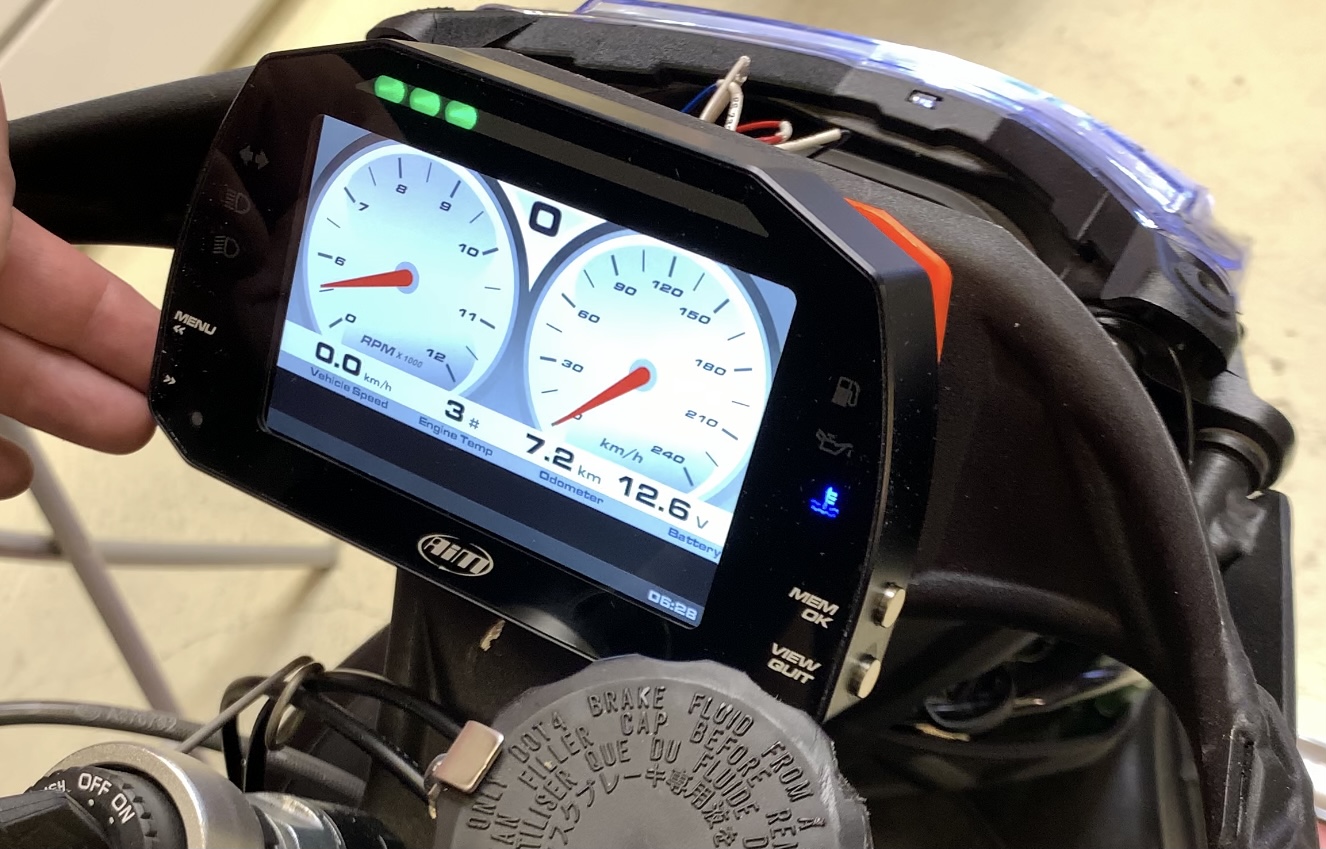

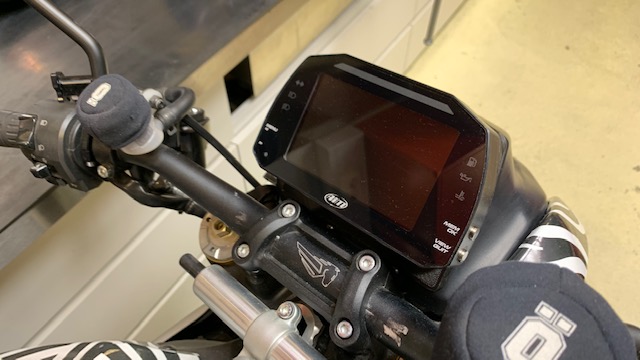

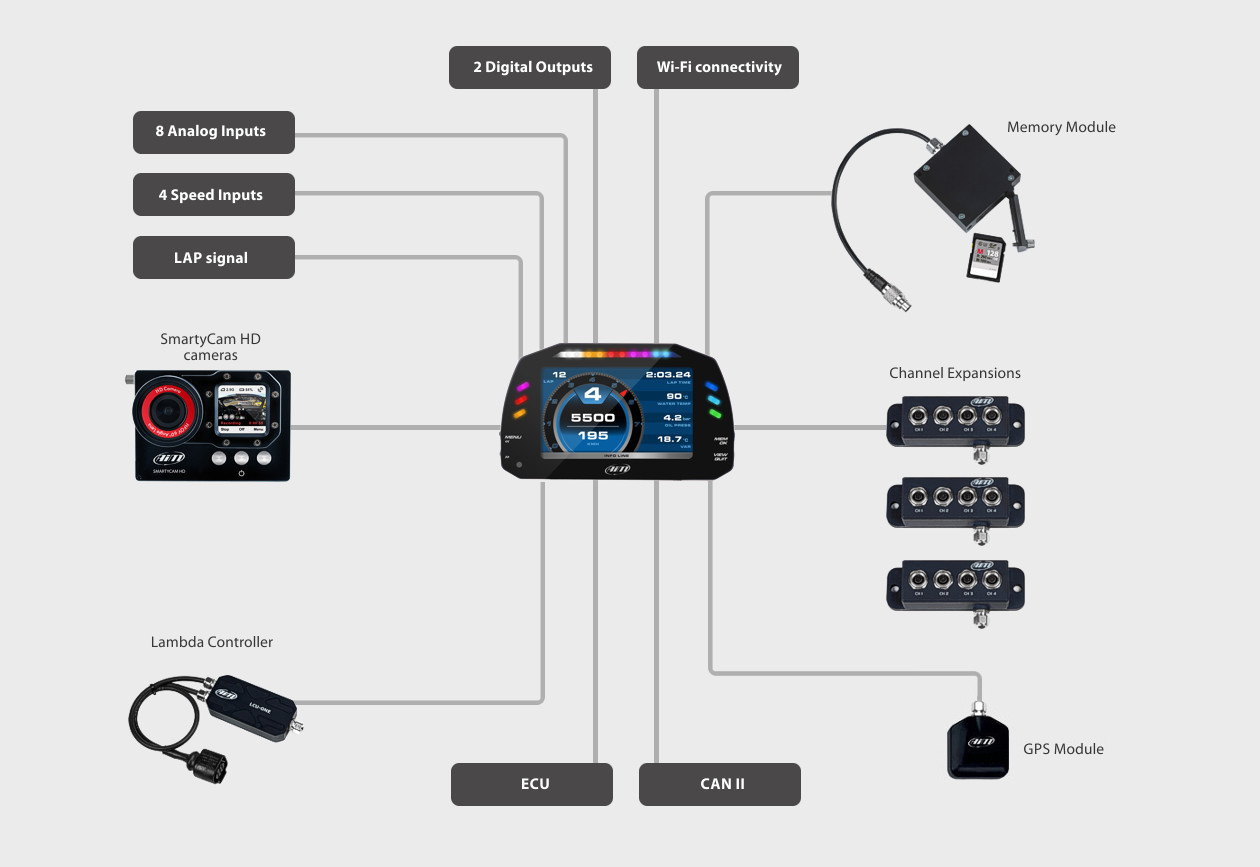

MXS 1.2 is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS09 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Same as our Art. Nr. 903051, but with additional features to run a scalable complete data recording system: -Internal accelerometer and gyro -Integrated WiFi 802.11 -Two digital outputs (Dout) -4GB data memory (hard) -Inclusive GPS module GPS09 Expand the system, according to your needs, using the built-in CAN bus, you can add expansion modules to the MXS to increment the performance and the data acquired, like temperatures, lambda, suspension travel and many other. 5" color display with great visual impact, configurable to show lap times and all the info coming from the ECM, analog/digital inputs, pre-defined math channels and - optionally - the GPS09 Module. Easy replacement of the original EBR / Buell 1190 RX / SX instrument cluster with plug & play wiring harness and model specific mounting adapter (pictures show prototypes). All mounting hardware and specific user manual included. High contrast TFT display MXS 1.2 Strada features a high contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the backlight at the best brightness levels. The dash comes in the "Street Icons" version for low fuel warning, oil pressure, water temp., etc. Watch your data in up to 8 pre-configured pages MXS 1.2 Strada shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, laptimes and much more... You can choose the custom pages you wish among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using the pushbuttons. A diagnostic page with all vehicles Live data is included. Flexible alarms The ten multicolored RGB shift lights can be customized as you like, defining the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or - optionally - GPS information. You choose conditions and colors: select a solid alarm or flashing one - and the flashing frequency. It is also possible to configure an accompanying text message, and set the alarm priorities. Camera inputs, also for mirror camera Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management. The Blinker / Indicator functionality is at the OEM cluster integrated into the instrument cluster. For road usage an additional set-up is necessary. 2 solutions will be available and can be add optionally: 1. CAN-bus module what plugs into the bikes bus port. 2. Wiring harness with electronic blinker relay. Please choose the option in the menu. Technical details: Display 5” TFT Resolution 800x480 pixels Contrast 600:1 Brightness 700cd/m2 - 1,100 Lumen Ambient light sensor Yes Alarm LEDs 6 RGB freely configurable Shift lights 10 integrated freely configurable RGB LEDs CAN connections 3 ECU connections CAN, RS232 or K-Line Expansion CAN connection GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller, SmartyCam HD Analog inputs 8 fully configurable, max 1,000 Hz each Digital inputs 4 Speed inputs, lap signal, coil RPM input Digital outputs 2 (1 A max each) Second CAN Yes Wi-Fi connection Yes Accelerometer Internal Three-axial ± 5G + Three-axial Gyroscope Internal memory 4 GB Body Anodized Aluminum Pushbuttons Metallic Connectors 2 Motorsport connectors + 1 Binder connector Power consumption 400 mA Dimensions 169.4x97x23 mm Weight 530 g Waterproof IP65
