AiM GPS09 Module

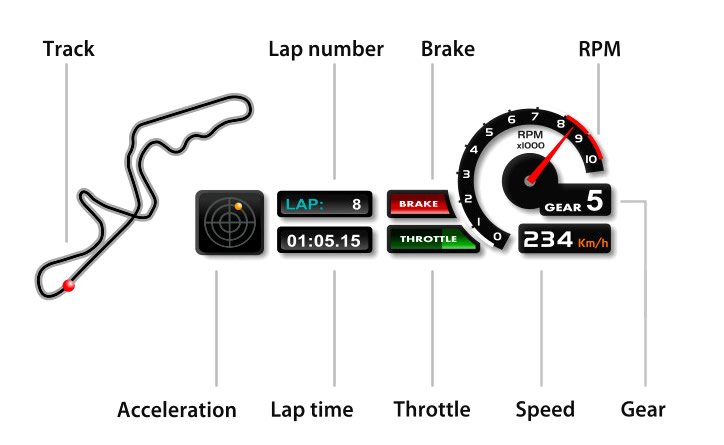

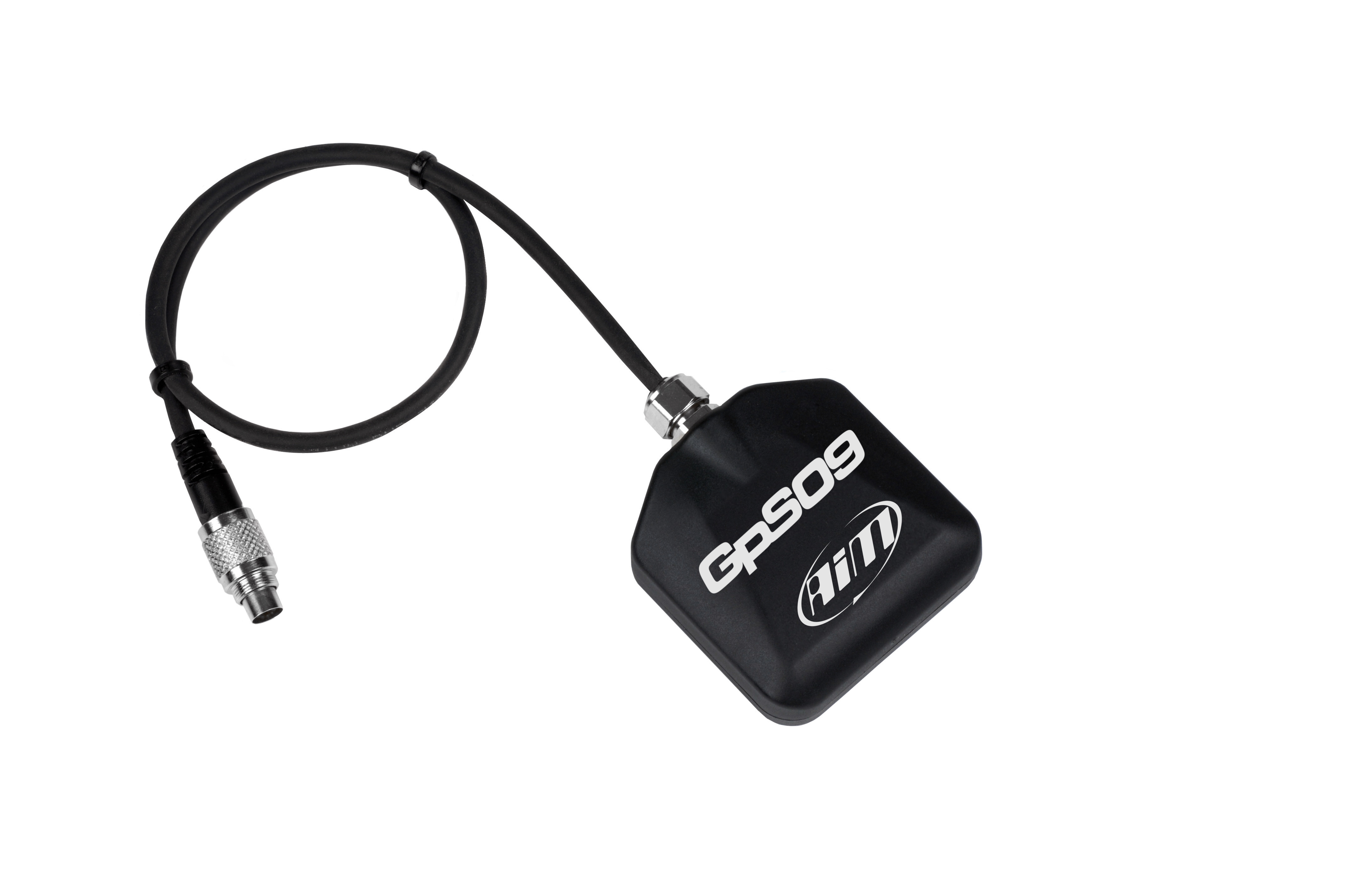

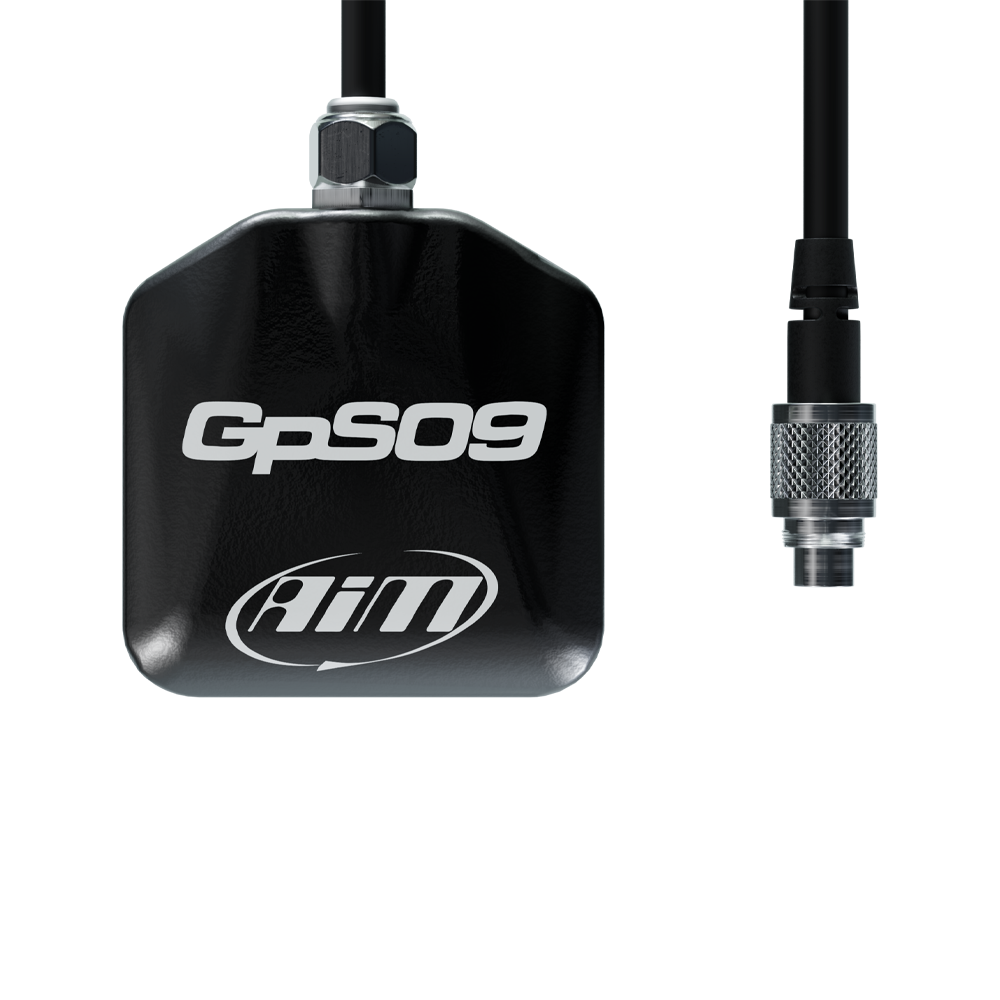

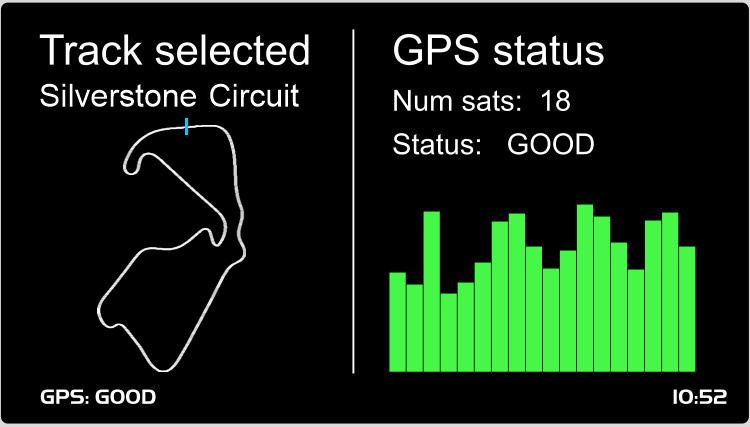

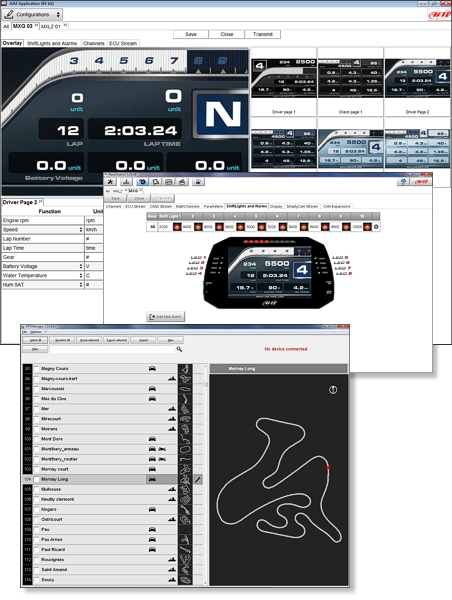

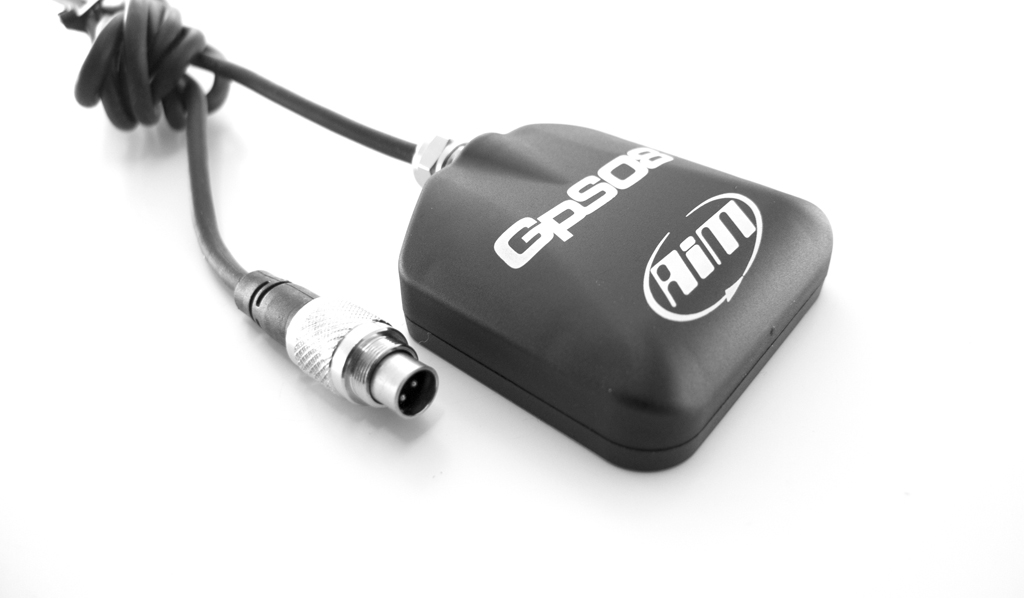

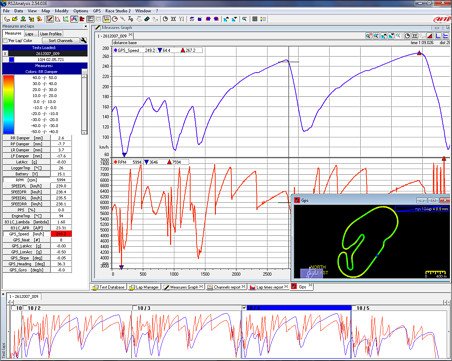

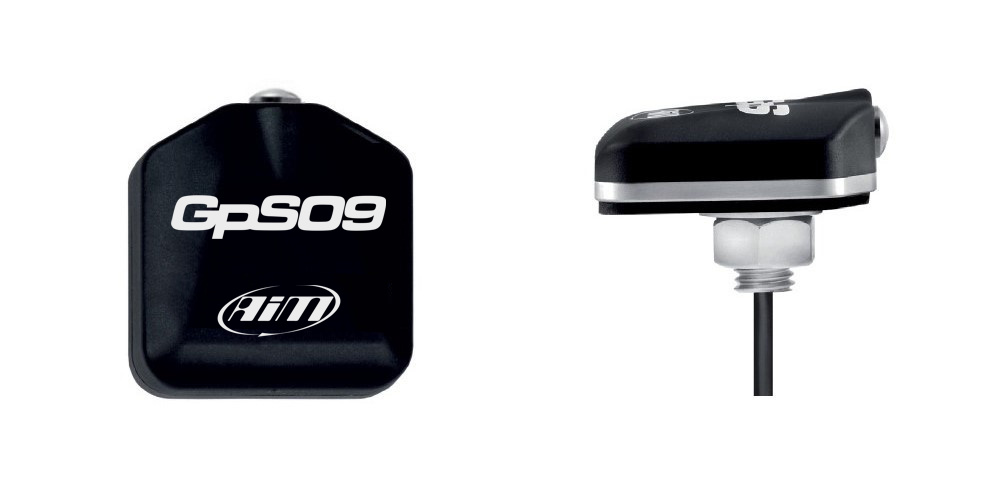

Plug GPS technology represented a true revolution in racing data acquisition, now another revolution has begun, thanks to GPS09 Module and Race Studio 3 software. As you start a track session you start sampling lap and split times as well as speed, position and acceleration... all the information you need for engine tuning as well as for improving your driving technique. Works plug & play with the AIM MXS 1.2 instrument clusters. 2 versions available (choose in the menu): -Cable connector on the side -Cable connector on the bottom for bolt through (fairing) mounting, like to position the antenna on the solo tail. Key features: Less than 0.5 meters (1.6 feet) average tolerance, which means absolute precision in determining the vehicle position in curves and when survey points belongs to non-following close track segments. Satellite signal is locked very rapidly. The frequency has been improved from 10 to 25 hz. A few seconds after switch-on GPS09 is ready to operate. No risk of missing the signal anymore, as - in case of 'noise' or interferences on a system - the other systems guarantee signal continuity. AiM GPS09 Module Dimensions: 64.8 x 53.2 x 19.7mm Weight: 60.5g Cable length: 2000mm (2m)
