AiM SmartyCam HD

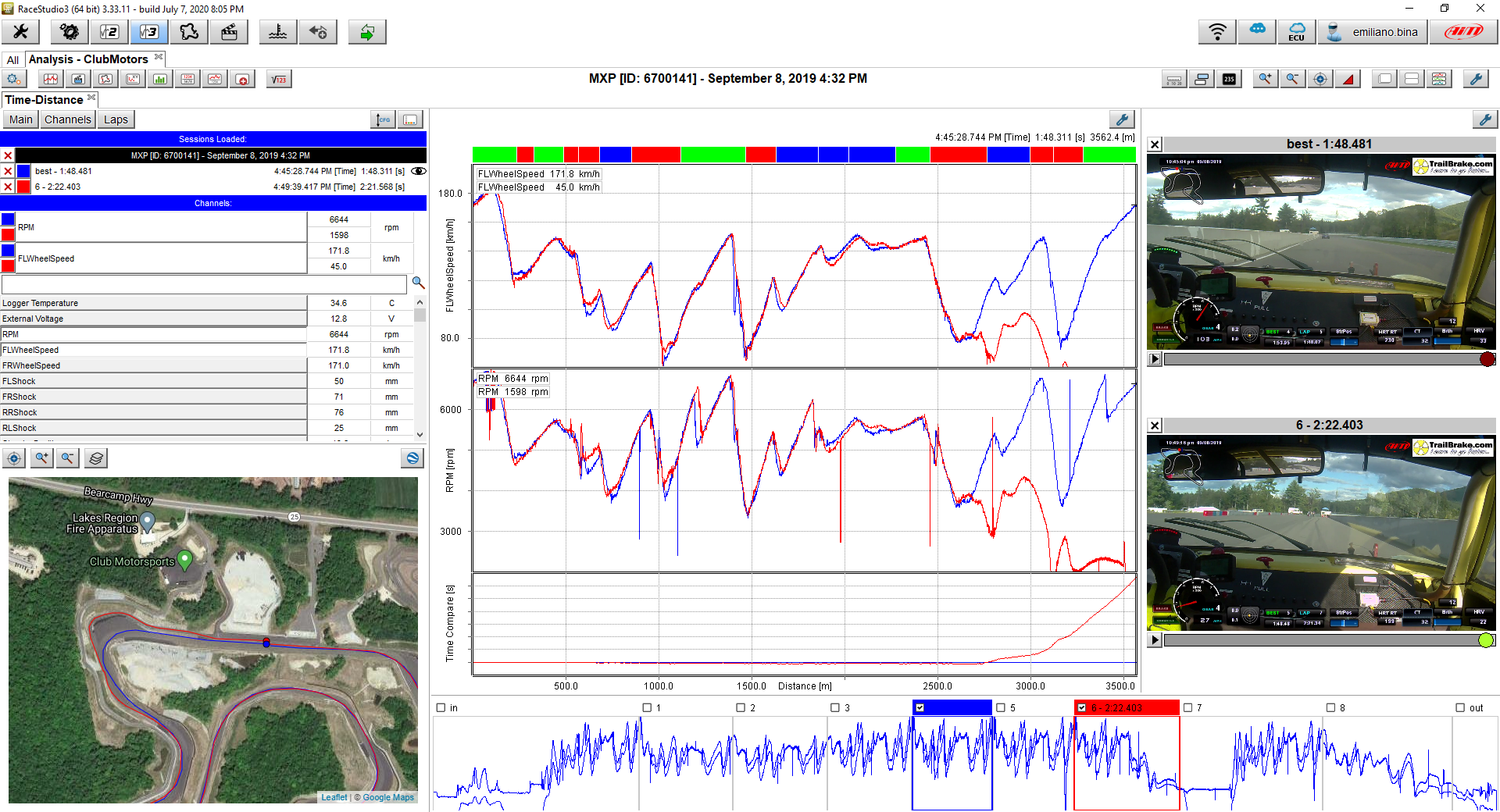

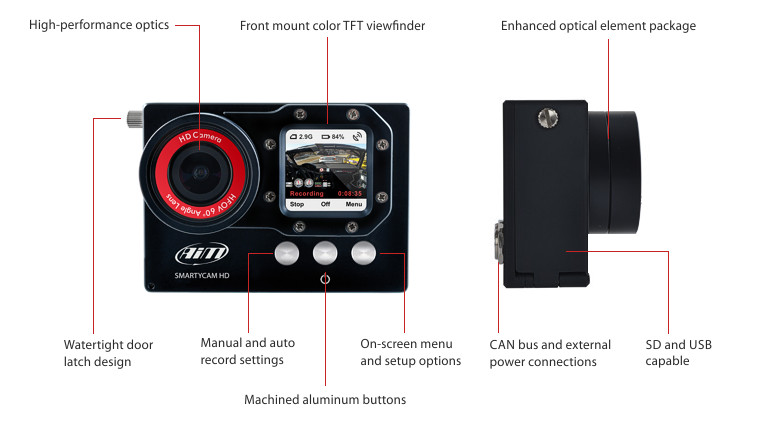

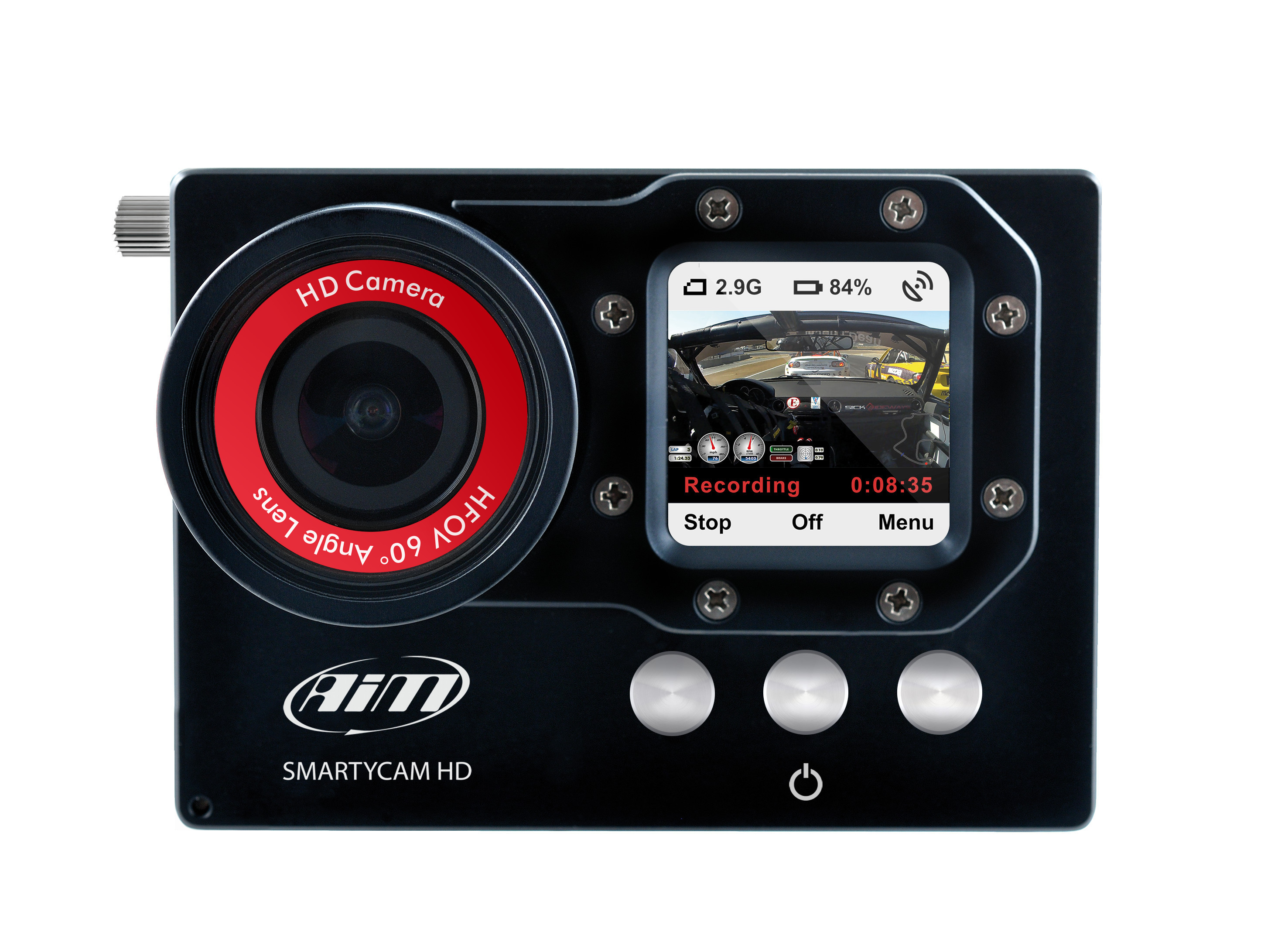

All this in the most robust and reliable system ever. In its new version, the electronics/mechanics have been further improved, and SmartyCam HD is now even easier to manage. Capture. Replay. Overlay The AiM SmartyCam HD camera is specifically designed for motorsports. Its purpose is to provide you with videos that include all the technical information you need to help you improve your performance while you're on track or road. The front mount of the camera features a 128 x 128 pixel TFT colour display offering immediate playback and helps with the initial setup. Real-Time Overlay The SmartyCam HD automatically overlays on your video all the data you need, speed, RPM, lap number, gear shifts and much more. You can choose the graphical layout to suit your requirements by choosing from the many different overlays available. You can analyse data from a large number of sources such as GPS track map and vehicle position and speed, lap and split times. AiM Loggers/Dash Loggers connected to your ECU: RPM, throttle, engaged gear, acceleration, temperatures, pressures and additional sensors attached to your Logger/Dash Logger. CMOS Sensor & Lens Unlike generic multipurpose cameras, SmartyCam HD has been designed to avoid image distortion, thanks to the innovative Global Shutter CMOS sensor. The camera shutter captures the entire image at the same time. Images are captured and not affected by vibrations. The SmartyCam HD 2.1 is available with a choice of two lens options: The narrow 67° HFOV lens or wide 84° HFOV lens. 84° HFOV lens is recommended for motorcycle. Designed For Extreme Conditions The SmartyCam HD will last and work under the pressure of extreme motorsport conditions such as poor weather, strong and prolonged vibrations, continuous rain and extreme high and low temperatures. Automatic Start/Stop When you're at the starting grid, the last thing you want to be doing is fumbling around with your camera. The SmartyCam HD has been designed with this in mind and switches on/off automatically, and starts/stops recording in the same way. The logger can switch on the SmartyCam HD it is connected to. Switch-off is automatic too, you decide after what period of non-activity the camera will switch off. Recording can also be started/stopped automatically or via the keyboard. With an automatic switch-on, the camera will start recording when the speed or RPM threshold is exceeded. In this case, you can decide how long after dropping below the selected point, the video will automatically stop. High Storage Capacity Using a compression system optimised to provide the perfect balance between video quality and file size. Video is stored on an SD card and you can select 3 different recording quality options: High quality, 1 hour = 4GB, Standard quality - 1 hour = 2GB, Low quality - 1 hour = 1.5GB. With a 128GB SD card, you can store over 32 hours of footage. The USB port and SD card housing are 100% protected from air and weathering. 4GB SD card included. Notice: for full function you need the optional GPS module. SmartyCam HD automatically overlays on your video all of the data you need: speed, RPM, lap number, gear shifts and much more. Simply choose the data and graphical layout you prefer from the many different overlays available. Data can be read from all possible sources. From GPS: track map and vehicle position as well as speed, lap and split times. From AIM logger/dash logger connected to your ECU: RPM, throttle, engaged gear, acceleration, temperatures, pressures etc. from your AIM MXS 1.2 instrument cluster. When you're getting ready to race the last thing you want to be doing is fumbling around with your camera. The SmartyCam HD has been designed with this in mind and switches on/off automatically and starts/stops recording in the same way. The SmartyCam HD can be switched on by the MXS 1.2 dash it is connected to. Switch-off is automatic too, you decide after what period of non-activity the camera will switch off. Recording can also be started/stopped automatically or via the keyboard. With an automatic switch-on, the camera will start recording when the speed or RPM threshold is exceeded. In this case, you can simply decide how long after dropping below the selected threshold the video will automatically stop. Configuration will be done with Race Studio 3 (free download). https://www.aimtechnologies.com/aim-software/ More info: https://www.aim-sportline.com/rs3-docs/index.htm You can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras. With Race Studio 3 you can also analyse all data recorded by the SmartyCam and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances. Video format H.264 1280x720 pixels @ 30 fps Display resolution 128x128 pixels Field of view 67° or 84° Lens Telecentric with 6 elements Supported SD card Up to 128 GB Memory capability 1.5 GB (1 hour low quality recording) 2 GB (1 hour medium quality recording) 4 GB (1 hour high quality recording) Internal battery Rechargeable Lithium battery - 1.950 mAh Internal battery duration 120 - 150 min of recording Battery charge 700 mAh 12 V Accelerometer Three-axial ± 5G External power 9-15 V Auto Power ON yes, if connected to an AiM logger Auto Power OFF Yes Auto Start/Stop Recording Yes Usage temperatures -10°C/+60°C Dimensions 87x63x49 mm Weight 280 g, battery included Waterproof IP67
