EBR 1190 RX/ SX /RS Chassis Stabilizer Kit

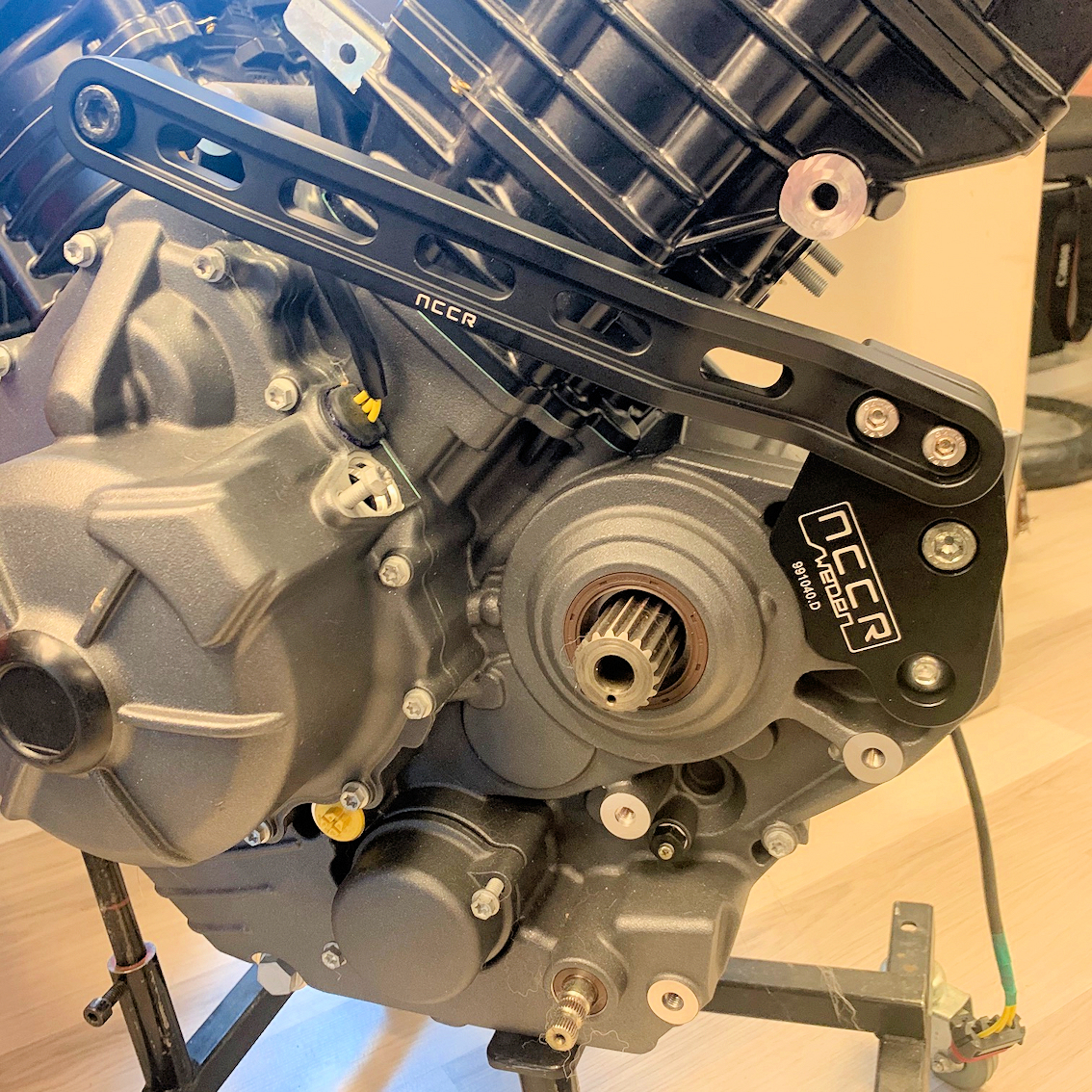

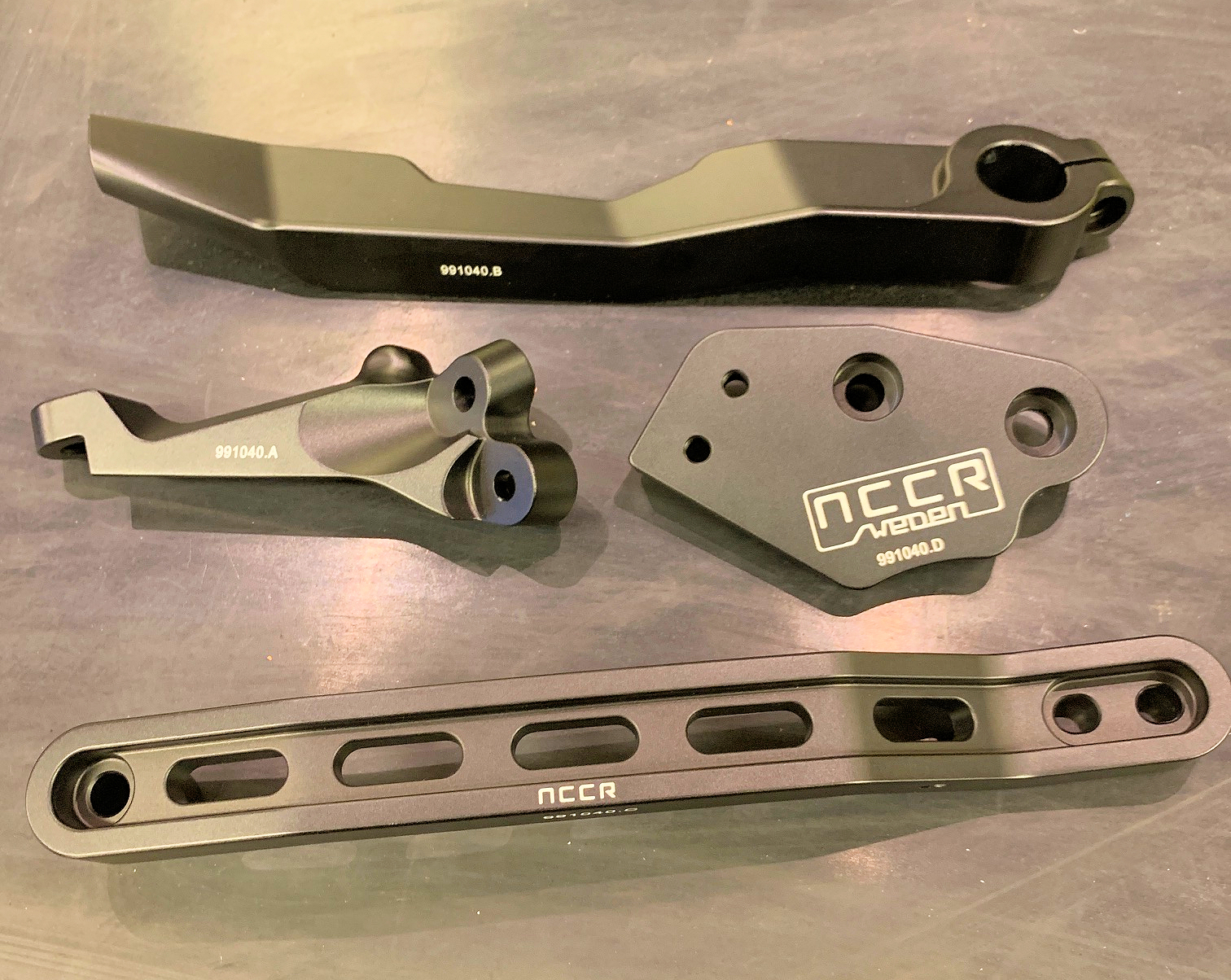

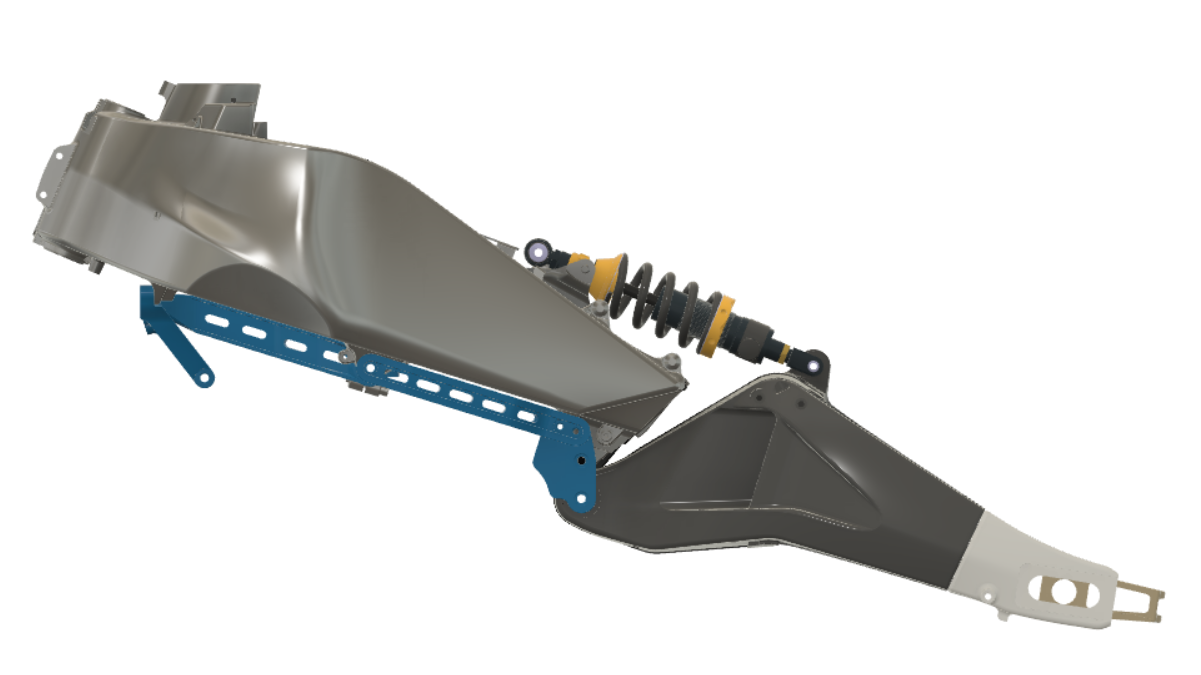

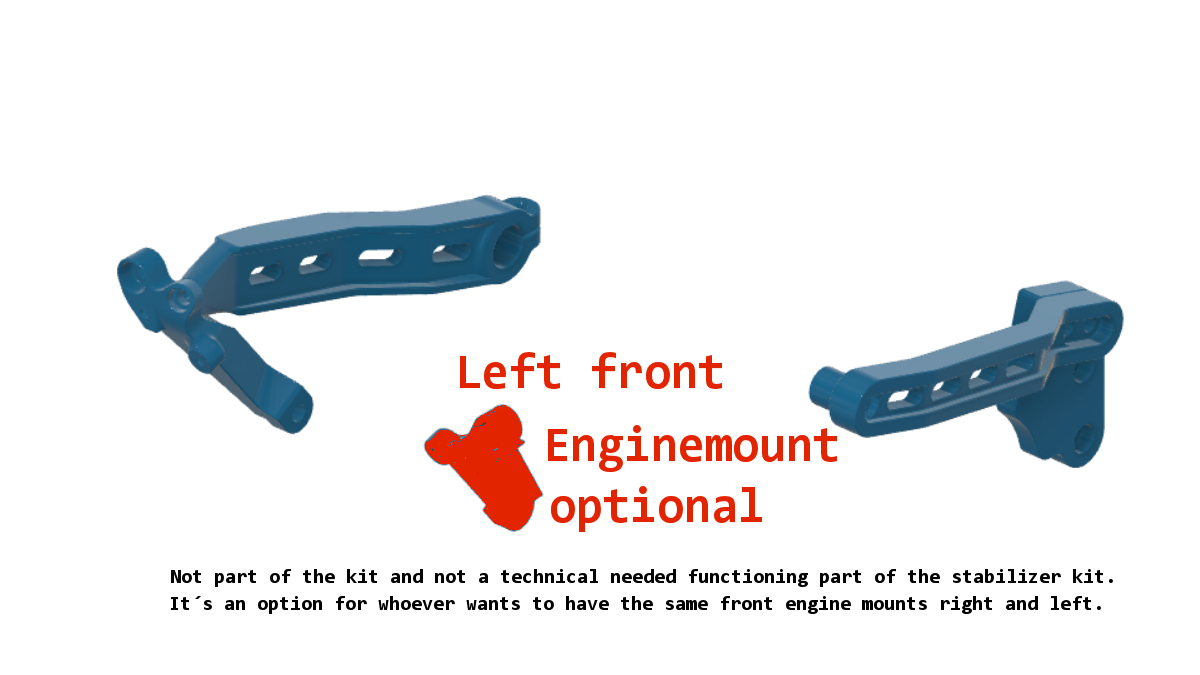

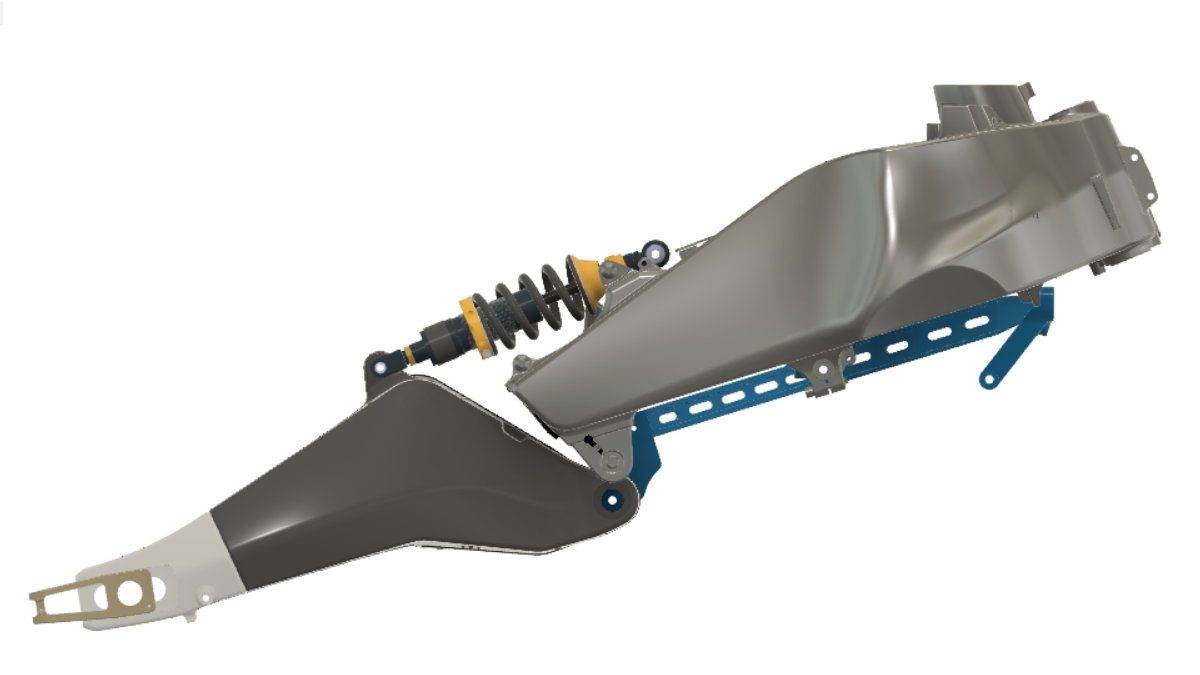

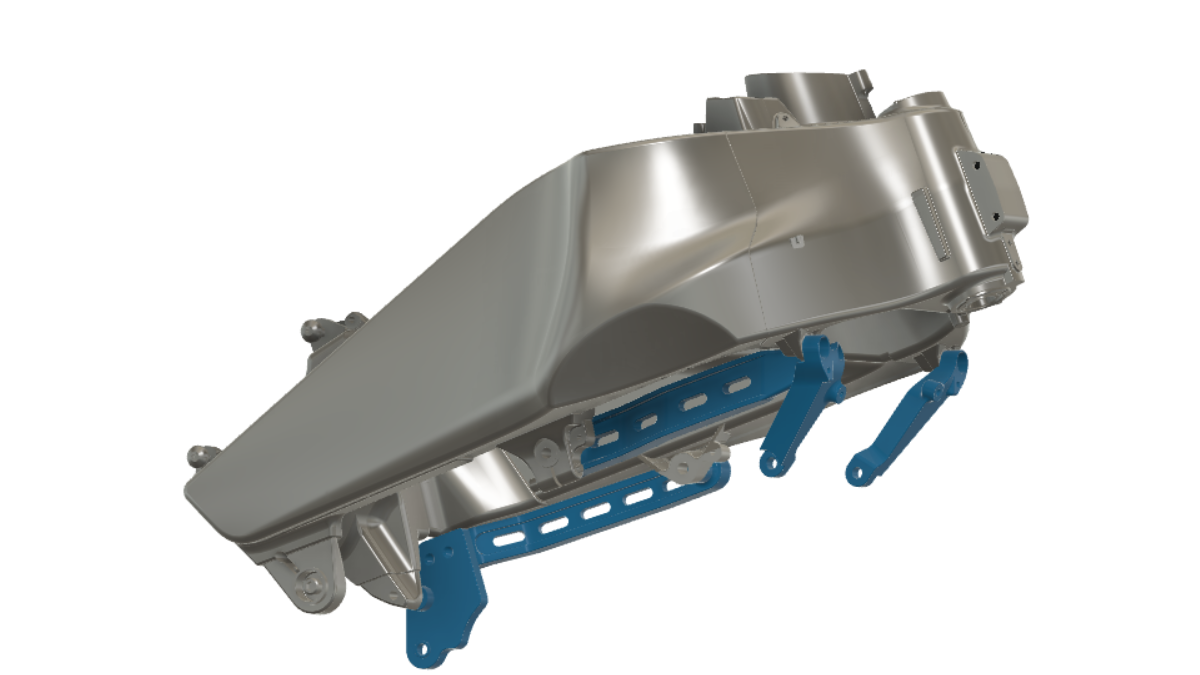

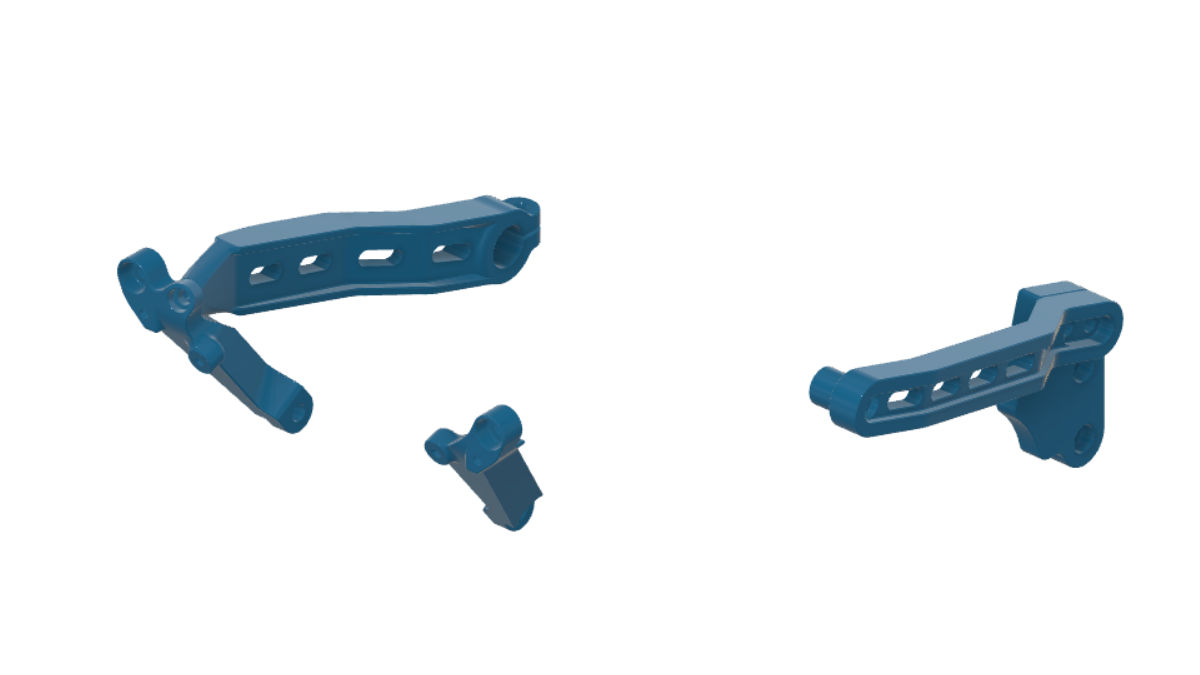

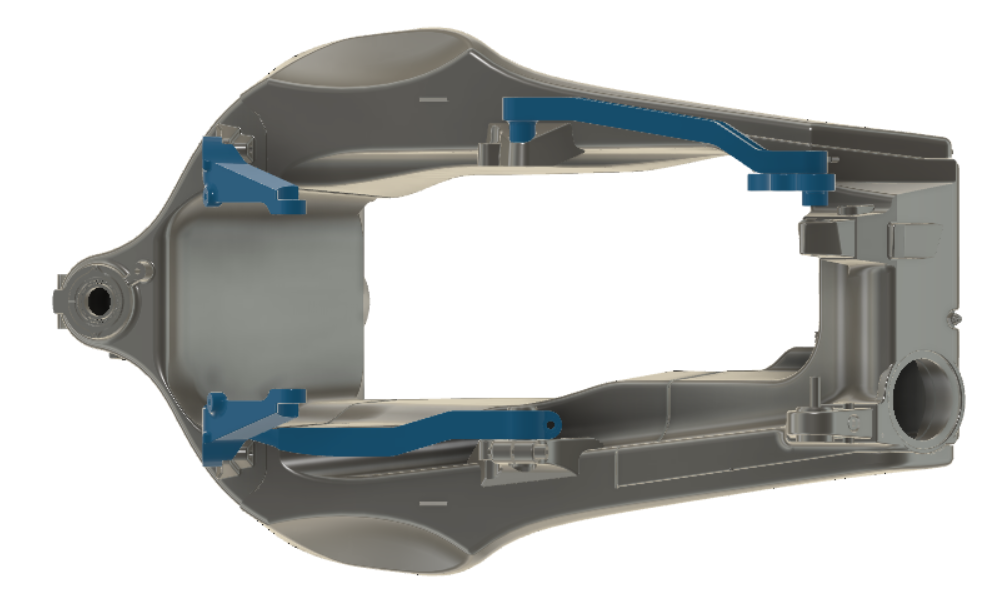

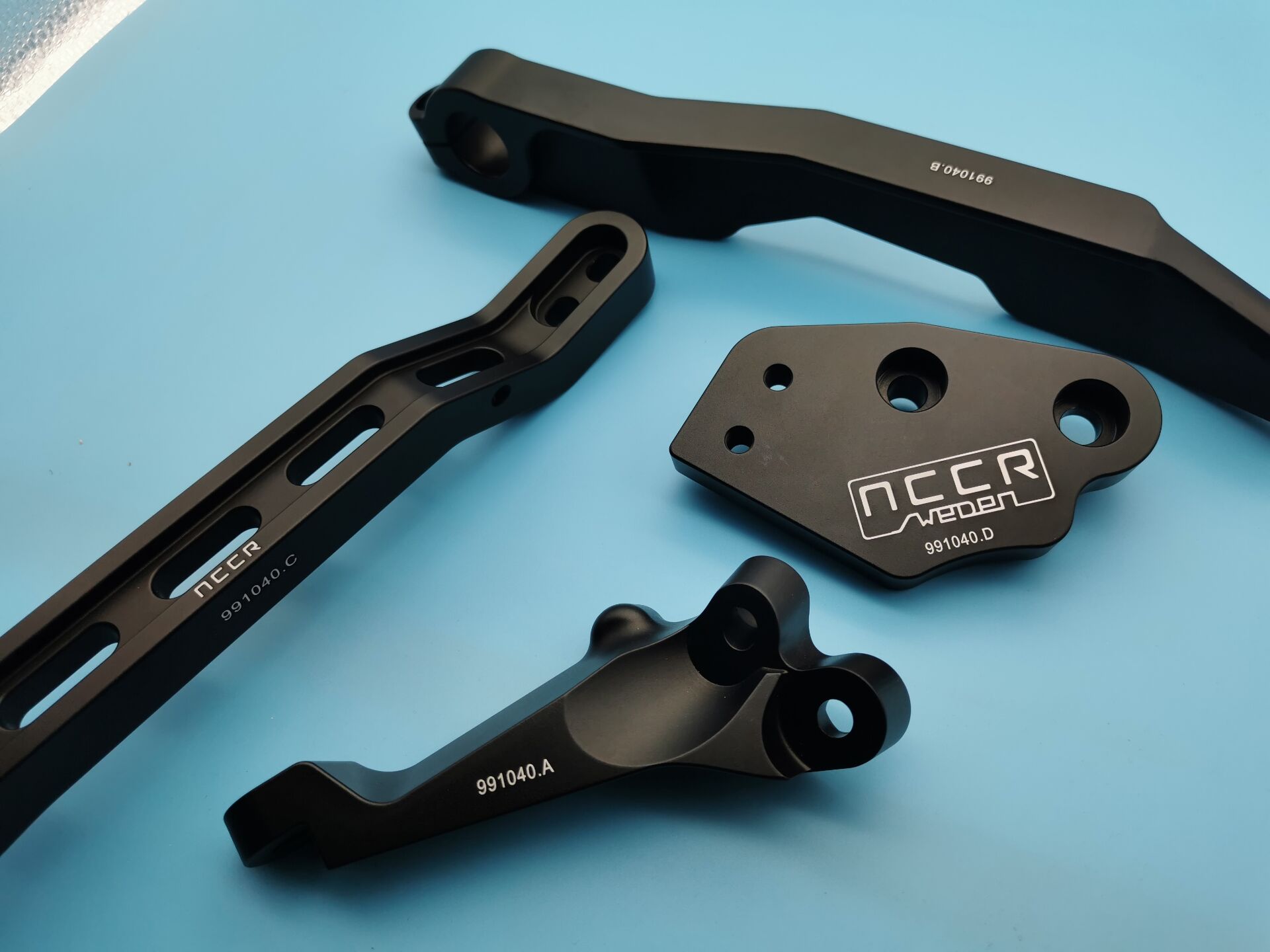

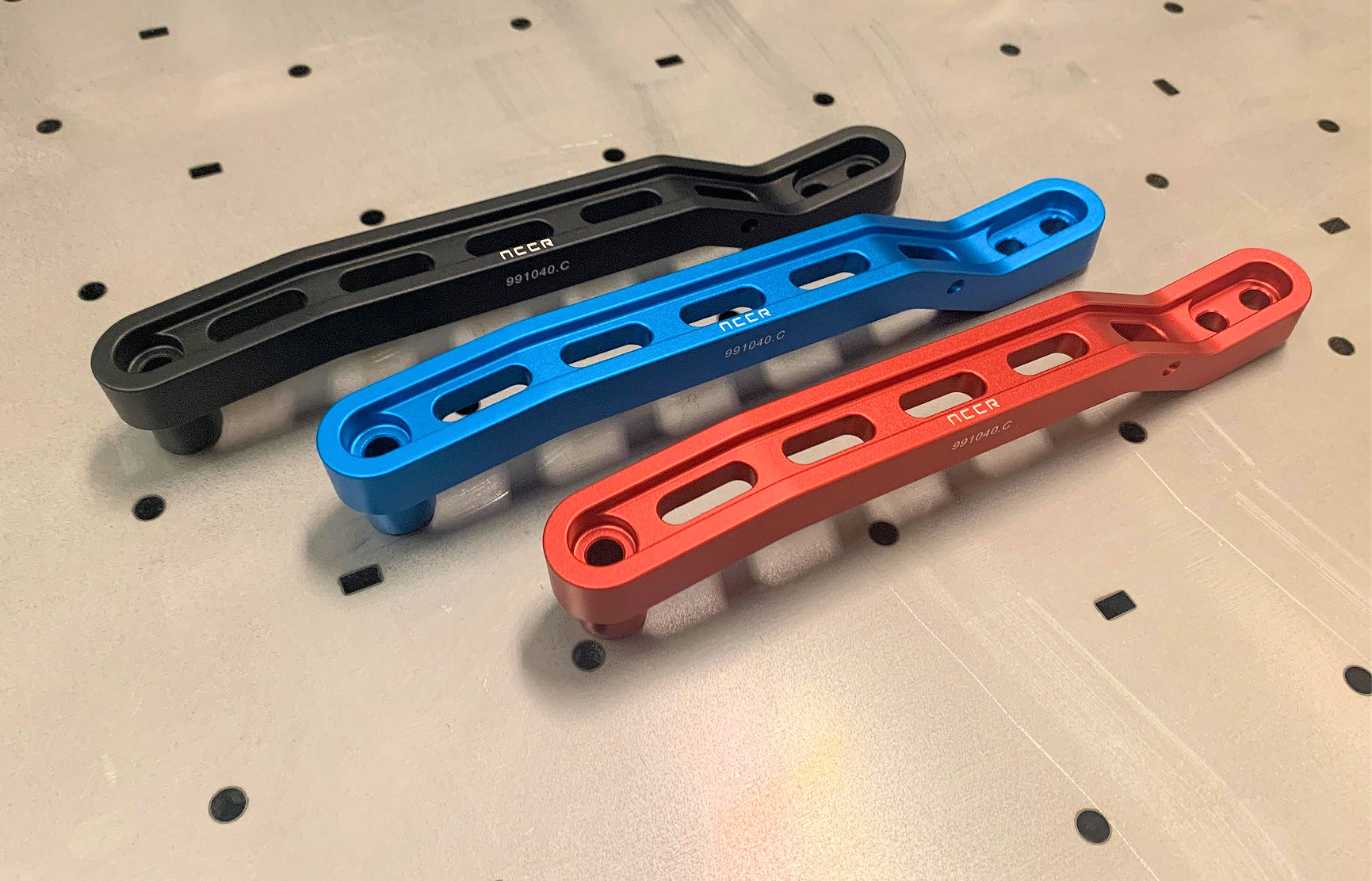

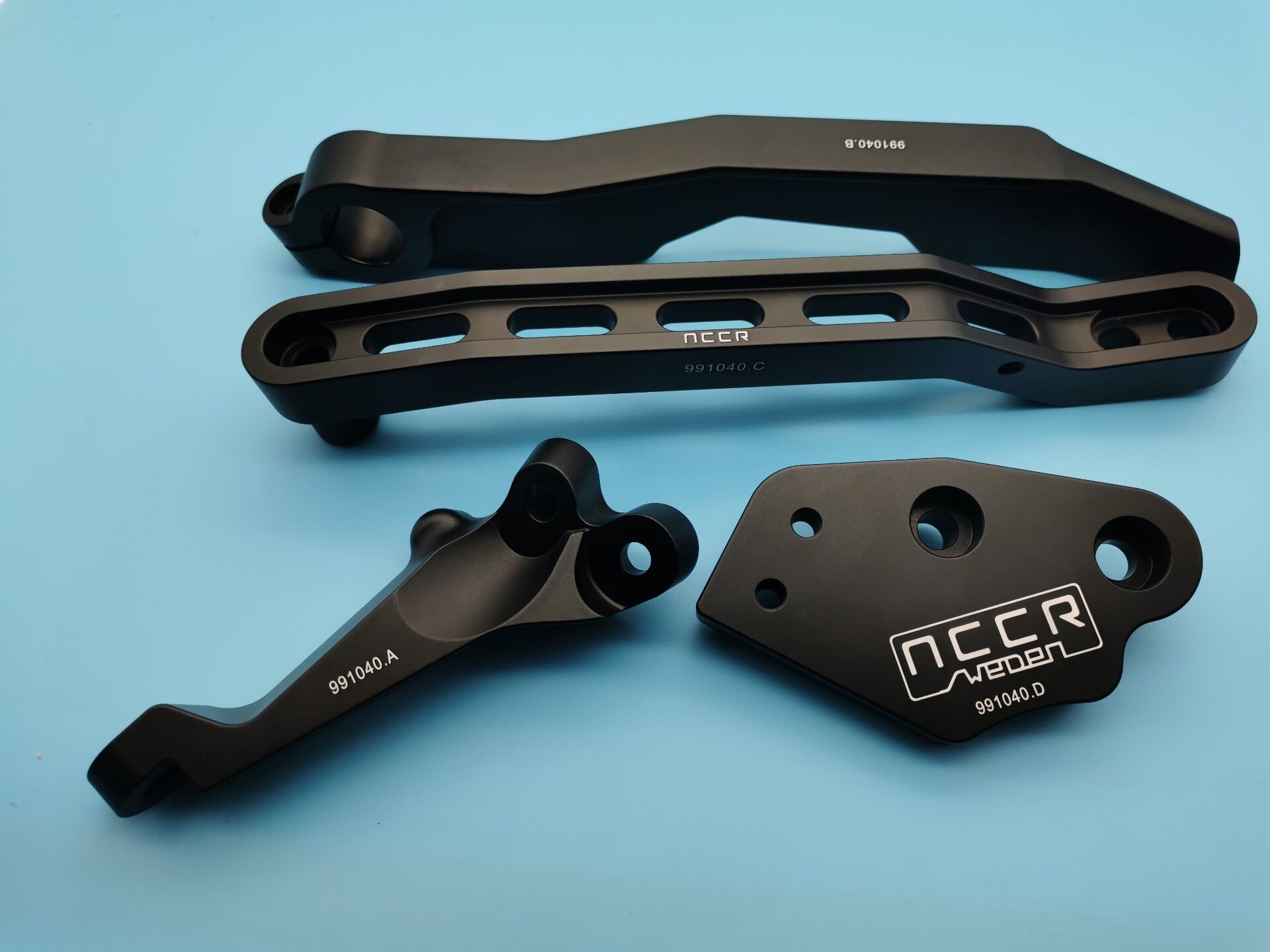

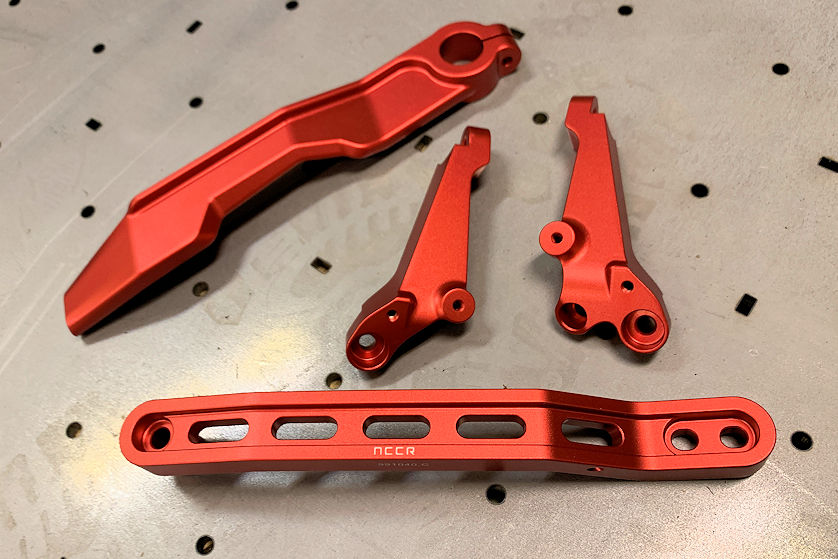

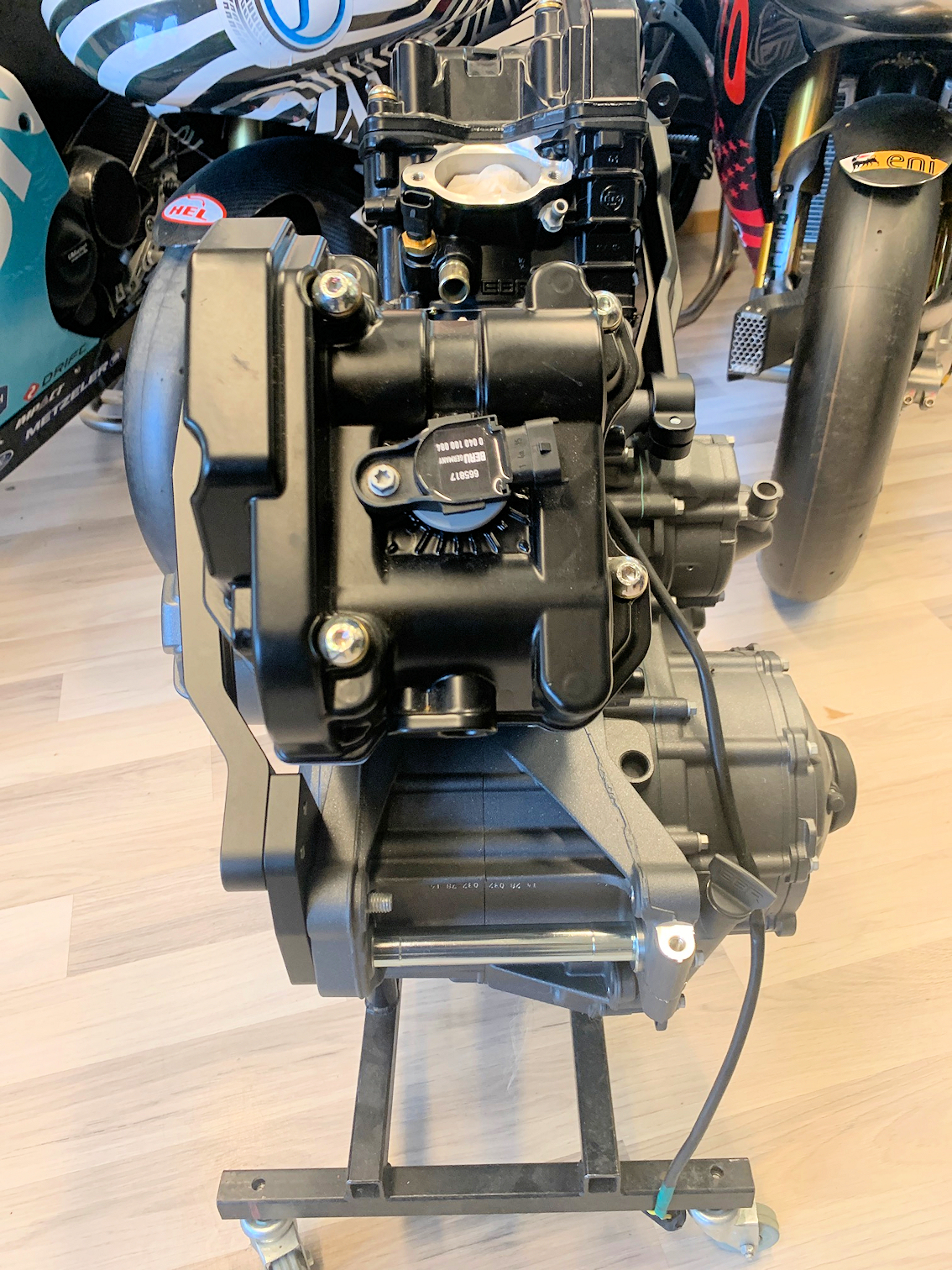

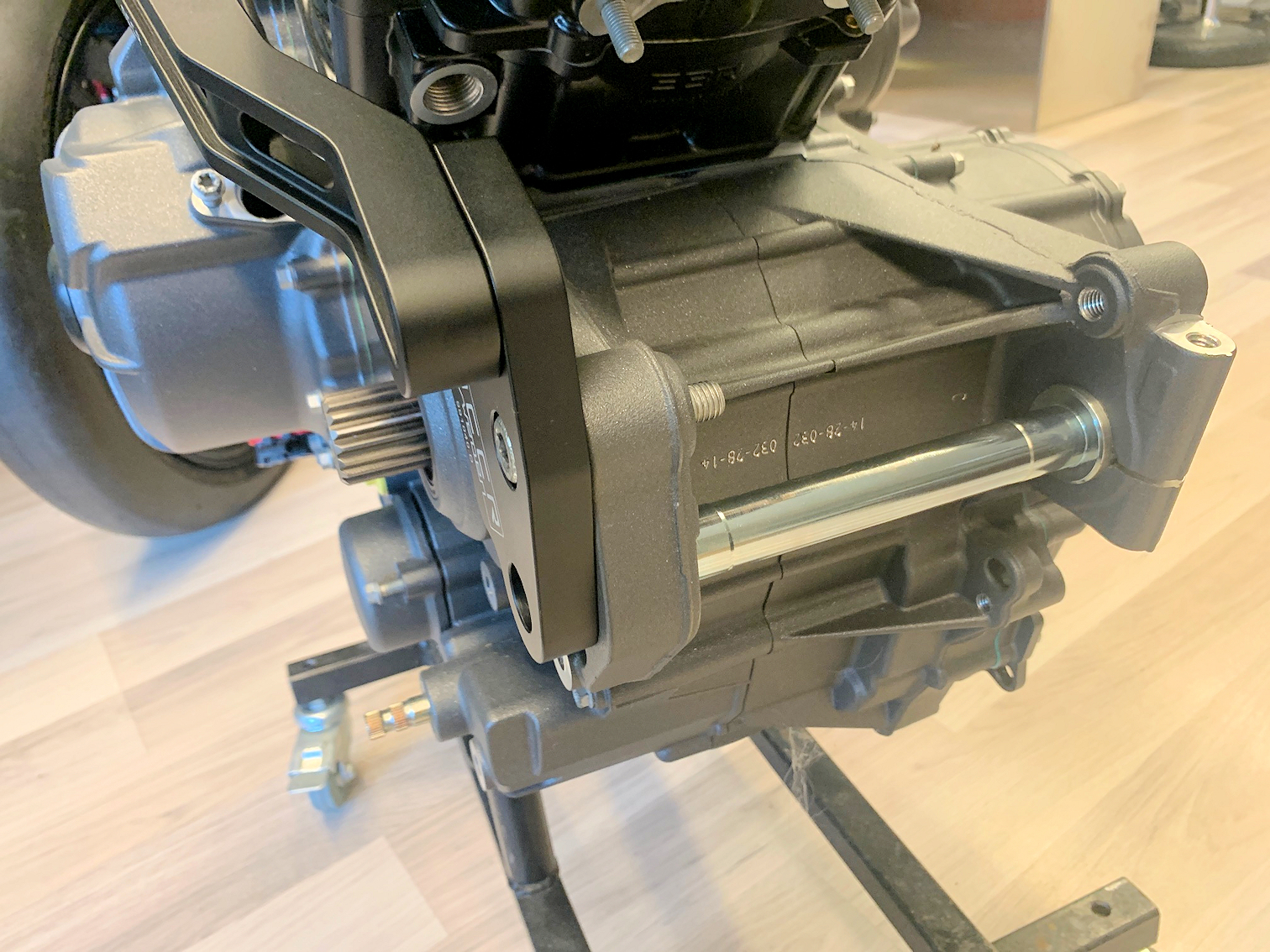

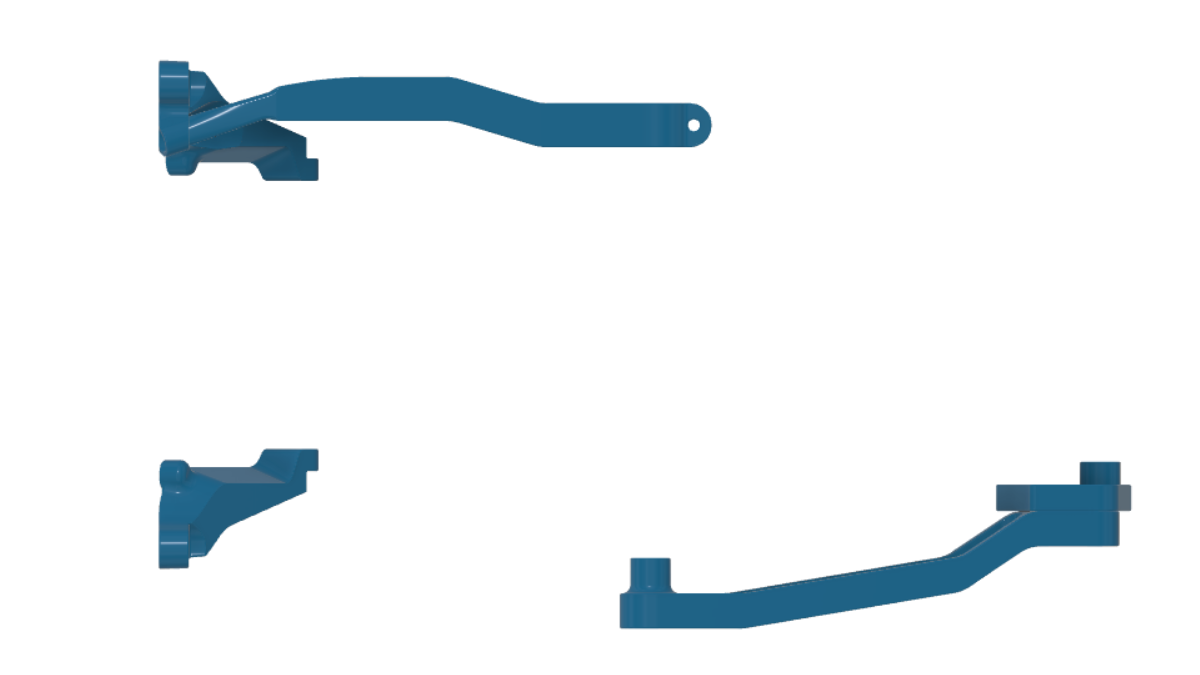

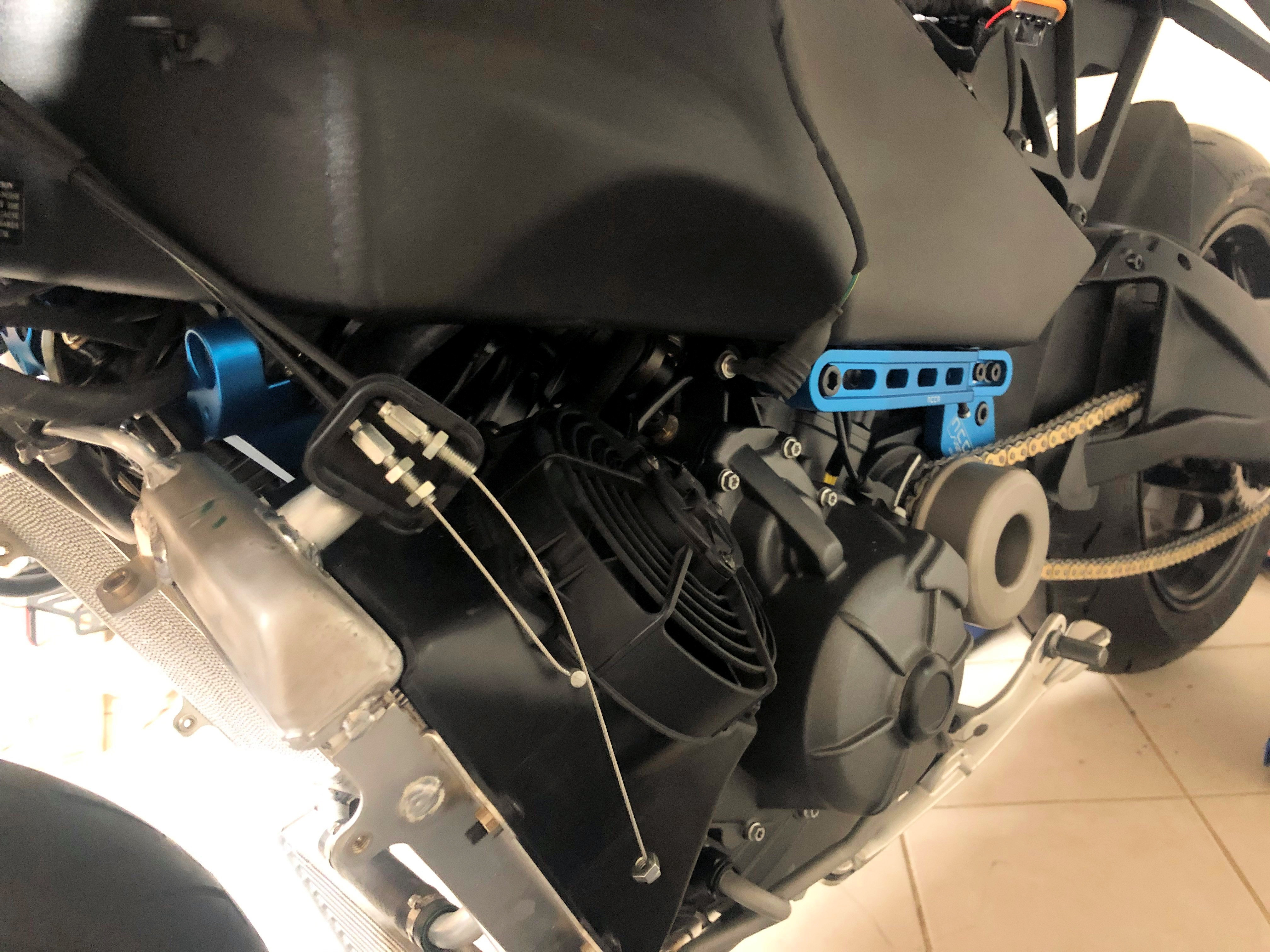

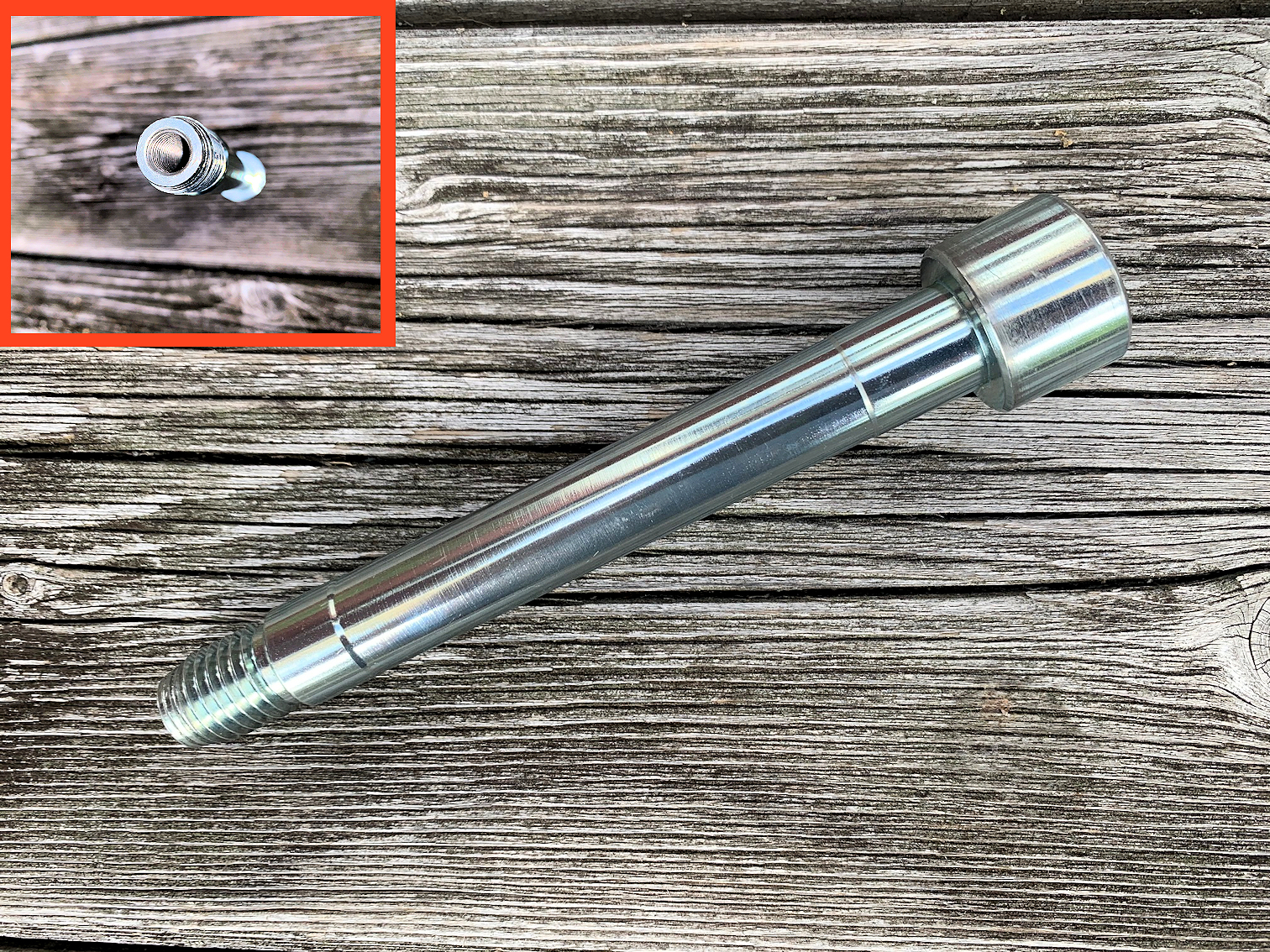

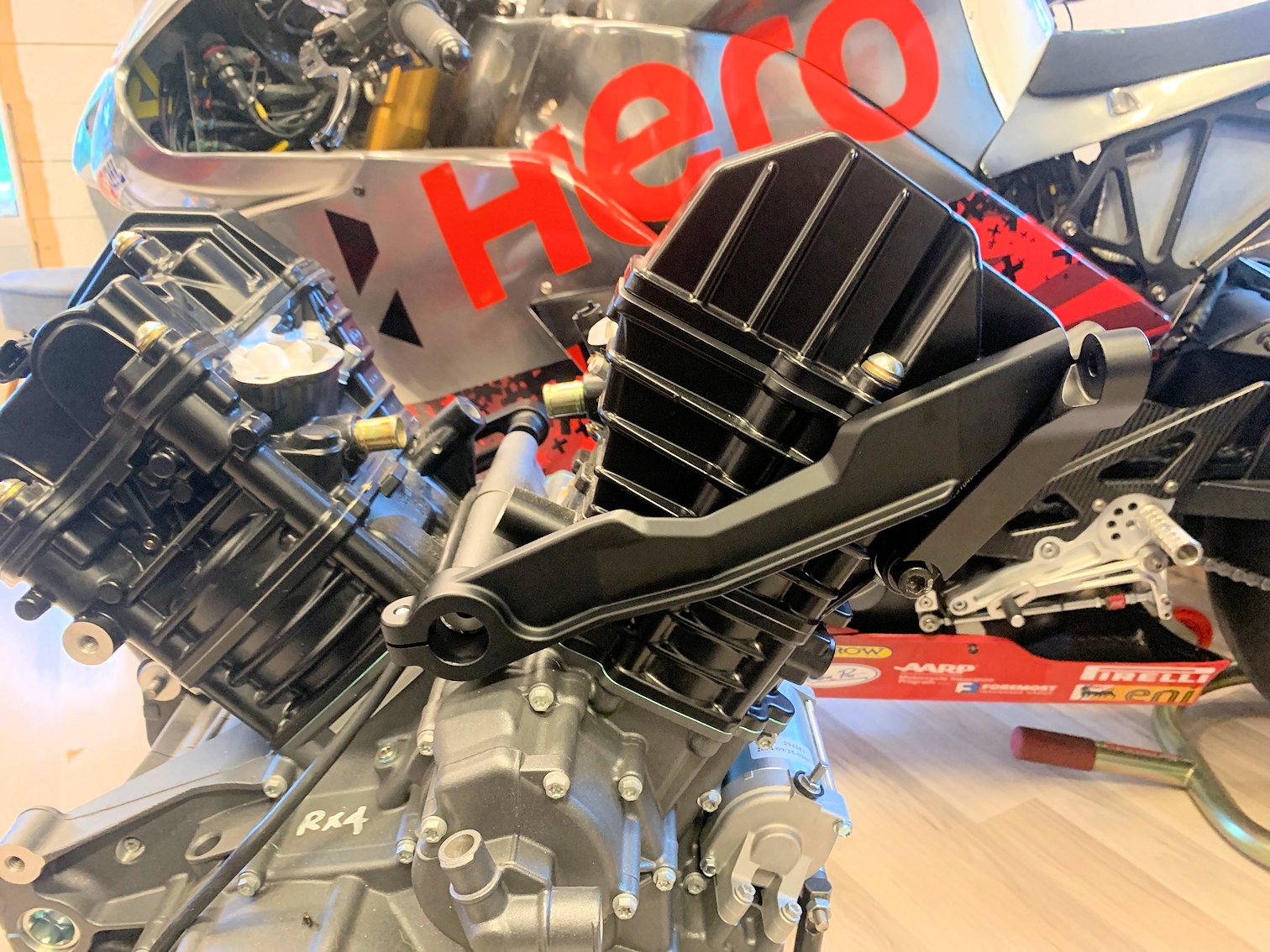

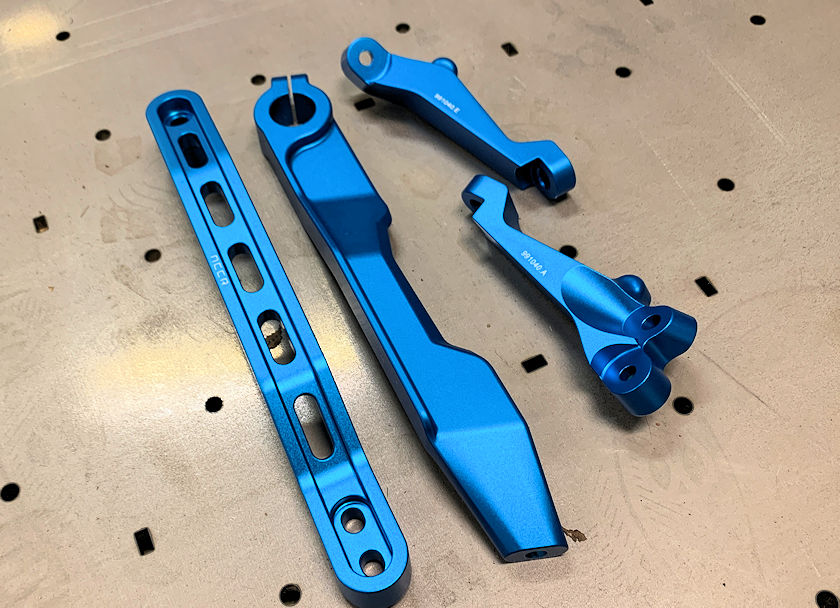

Developed by NCCR to minimize the EBR 1190 engine twist in the chassis under full acceleration and Racing. CNC manufactured from 7075 high grade aluminium, this 4 piece (left front engine mount optional) stabilizer kit reinforce the connection between frame and engine. The result is less stress on the engine from the chassis influences and a more clear feedback and more accurate feeling of the bike, The kit connects the left rear lower engine mount to the swingarm axle. From there a connection link goes to the left middle engine mount. As the original mount goes through the engine from the left to the right side of the bike, we clamp now a nother link to the middle mount on the right side and connect there to the new with the kit also delivered front mount. The kit comes with a detailed instruction manual and can be installed with engine and frame in place but coolant need to be drained. Comes black anodized with all necessary mounting hardware. Requires machining an M10 thread into the swing arm axle. If you cannot do it by yourself, ask us for it, or please order the optional available ready machined swing arm axle, or our high strength NCCR swing arm pivot shaft (ArtNr. 991070). It also requires a small cut out on the plastic sprocket cover, a template comes with the kit. We can supply on demand a new ready cut cover. Available in black anodizing color. Below you find a link to one of our videos with some footage about the kit mounted to an engine. If you like to learn more about it, please check the deeper going video on our Youtube channel. https://youtu.be/DuHWLUIUiiA
